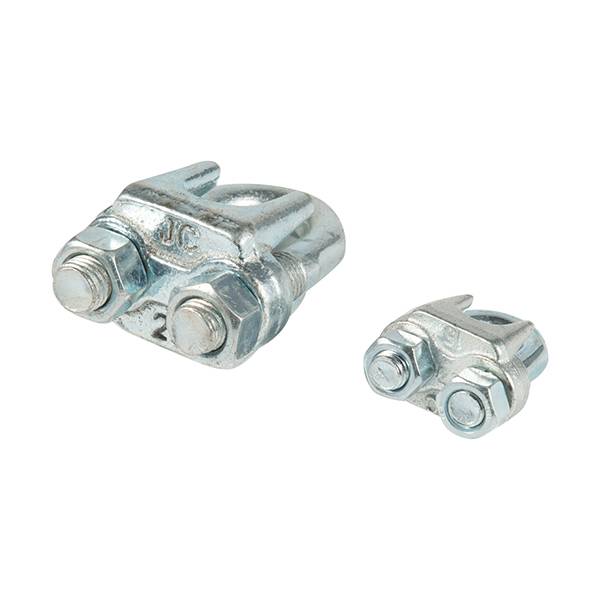

Steel wire rope clamp is also called steel wire rope clip. The wire rope clip is mainly used for the temporary connection of the wire rope, the fixing of the back hand rope when the wire rope goes through the pulley block, and the fixing of the wind rope head of the wire rope on the rack, including the phosphating coating wire rope, galvanized wire rope, stainless steel wire rope and smooth wire rope.It is a wide wire rope clamp used in hoisting operation. This product is widely used in steel, mechanical mold processing, warehouse and other lifting process. The connection of block and cylindrical steel is easy to operate and can be used in a more labor-saving and fast. Selection of high-quality steel material from famous steel group. Production process standardization, process standardization, refinement. Finished Product Testing. The third party product inspections are acceptable. ISO Quality Management System Certificated Factory. Inspection before loading

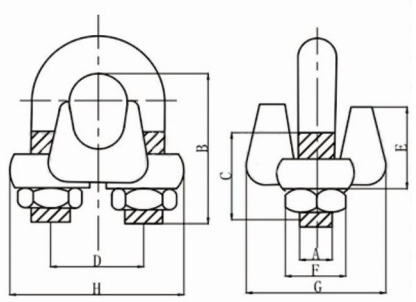

SIZE/mm A B C D E F G 3 21 10 10 4 9 12 16.6 5 23 10 11 5 11 13 19.65 6.5 26 11 12 5 13 15 23.65 8 30 15 14 6 16 19 28.85 10 34 17 18 8 19 22 35 11 36 18 19 8 20 22 37 13 40 21 23 10 24 30 46.24 14 44 22 23 10 25 30 48.24 16 50 26 26 12 29 33 52.5 19 54 30 29 12 32 38 64.5 22 61 34 33 14 37 44 72.5 26 65 37 35 14 41 45 82.5 30 74 43 37 16 48 50 95.5 34 80 50 42 16 52 55 105.6 40 88 55 45 16 58 60 125.6 Application
