1. Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads.
2. Wide adjustment range.
3. The central threaded spindle allows easy attachment and a safe and secure grip.
4. Small dimensions at beams with a low base.

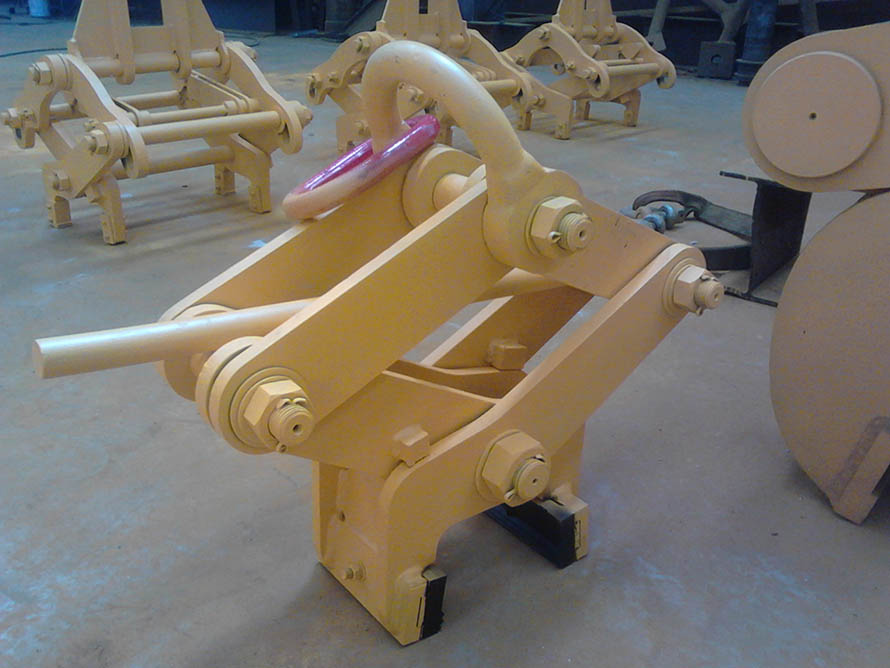

YT Type Rail Clamp
| Model | WLL(TON) | Jaw Opening(MM) | Weight(KG) |
| YT1 | 1 | 20-100 | 8 |
| YT3 | 3 | 110-135 | 22 |
| Working load limit(WLL):1T. |  |
| For lifting and handing of rails. | |
| They are extremely easy and simple to use and make for safe lifting. | |
| Available with automatic open/close device. |
YC Type Rail Clamp
| Part No. | Model | WLL (t) | Jaw Opening (mm) | Weight (kg) |  |
| WRS-170 | TPH16 | 16.0 | 70 | 15.8 | |
| WRS-171 | TPH18 | 18.0 | 70 | 22 | |
| WRS-172 | YGC1 | 1.0 | 20-100 | 8 | |
| WRS-173 | YGC3 | 3.0 | 110-135 | 22 | |
| WRS-174 | YS/YC1 | 1.0 | 75-220 | 3.8/4.2 | |
| WRS-175 | YS/YC2 | 2.0 | 75-220 | 4.6/4.8 | |
| WRS-176 | YS/YC3 | 3.0 | 80-320 | 9.0/9.2 | |
| WRS-177 | YS/YC5 | 5.0 | 80-320 | 11.0/11.2 | |
| WRS-178 | YS/YC10 | 10.0 | 90-320 | 16.0/16.2 |
YG Round steel Clamp
| Model | WLL(TONS) | Jaw Opening(mm) | Weight(kg) |  |
| YG0.5 | 0.5 | 50-100 | 3.2 | |
| YG1 | 1 | 50-100 | 4.1 | |
| YG2 | 2 | 80-130 | 16 | |
| YG3 | 3 | 120-220 | 32 | |
| YG5 | 5 | 200-320 | 104 |
Attention
Suspension installation shall be conducted by the suspension installation qualification person.
Choose the type of machine suitable for the purpose.
Use within allowable load.
Allowable plate thickness range use.
Heavy lifting, stage lifting, co-lifting, leaning lifting and horizontal grasping lifting shall not be allowed.
Never enter the drop or flip area.
No knocks or collisions shall be given to the lifting objects and spreader.
Do not make the lifting material move or stop sharply.
Avoid heavy lifting. It is better to use more than 2 hoisting tools for safety.
Check head bite, gasket, interdental blockage, wear condition and other abnormal phenomena before use.
Overloading is strictly prohibited.
Do not stay in the air for a long time when loading.
