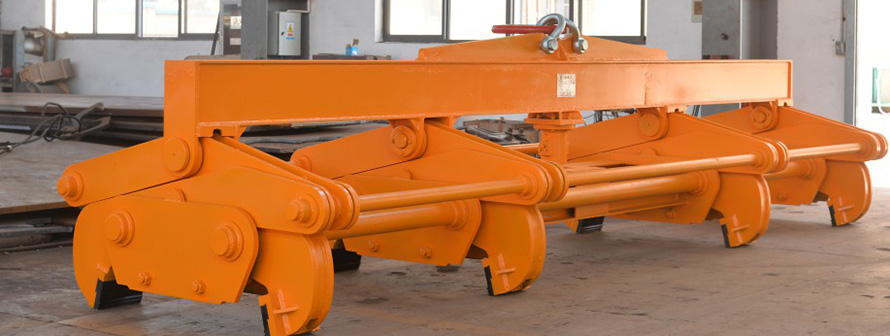

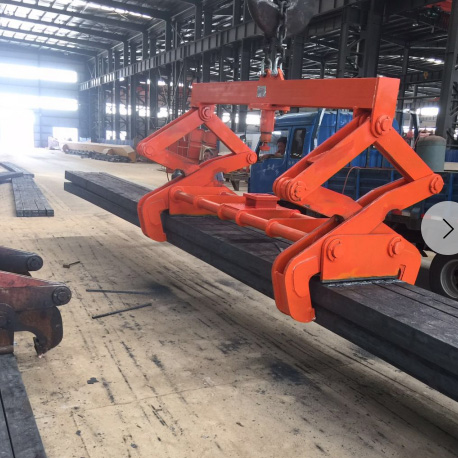

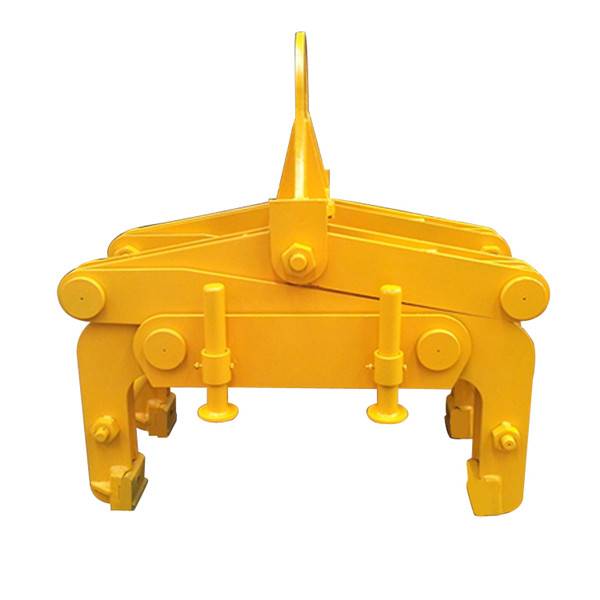

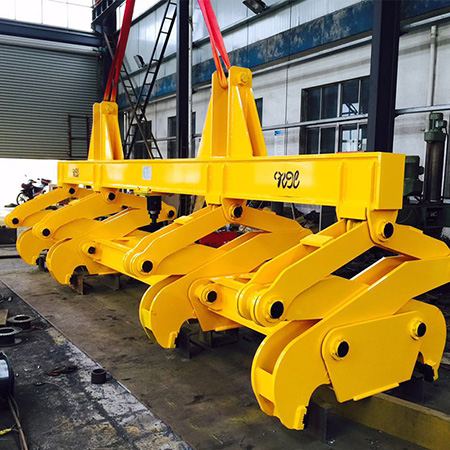

Steel slab billet clamp
Rail clamps: mainly being composed of hanging beam, connecting rod, opening and closing mechanism, synchronizer, clamp arm, support plate and clamp tooth.
Principle: Slab billet tong adopts the leverage principle; It can clamp the clamp without external force.
Advantage of the slab billet clamp works reliably, flexibly and safely. The opening and closing mechanism is made of alloy steel with high strength wearable. The slab billet clamp has a long service life. According to its structure, the slab billet clamp is divided into fixed clamp and adjustable clamp (the height H cannot be adjusted). The billet clamp is suitable for lifting different specifications and different numbers of billets.
The billet clamp for the use leverage may be the realization of mechnical clamping of the billet. It can be fxed or adjustable in order to adapt to different specification and layers.
| Rated load (t) | Applied range(mm) | Billet smallest thickness(mm) | Span (mm) | Max dimension (mm) | Self weight (kg) | |
| W | H | |||||
| 3 | 100-300 | 60 | 800 | 1200 | 1600 | 350 |
| 5 | 100-300 | 70 | 800 | 1200 | 1800 | 500 |
| 5 | 170-350 | 80 | 800 | 1300 | 1800 | 600 |
| 5 | 450-600 | 100 | 800 | 1200 | 1800 | 600 |
| 5 | 650-1000 | 140 | 800 | 1500 | 2300 | 850 |
| 8 | 150-450 | 90 | 1200 | 2000 | 2400 | 1300 |
| 8 | 450-600 | 110 | 1200 | 1600 | 2500 | 1300 |
| 8 | 450-750 | 130 | 1200 | 1600 | 2200 | 1350 |
| 10 | 450-900 | 140 | 1500 | 1900 | 2600 | 2200 |
| 10 | 650-1000 | 150 | 1500 | 1600 | 2600 | 1800 |
| 10 | 700-1100 | 160 | 1500 | 1700 | 2600 | 1900 |
| 12 | 450-750 | 120 | 2000 | 1800 | 2400 | 2600 |
| 12 | 235-800 | 150 | 2000 | 2300 | 3000 | 2700 |
| 16 | 450-750 | 120 | 2500 | 2000 | 2700 | 3600 |
| 16 | 450-900 | 140 | 2500 | 2100 | 3000 | 3800 |
| 16 | 650-1000 | 150 | 2500 | 2000 | 2700 | 3800 |
| 16 | 600-1100 | 190 | 2500 | 2400 | 3100 | 4200 |
| 16 | 850-1250 | 160 | 2500 | 2000 | 3000 | 4200 |
| 20 | 700-1100 | 150 | 3000 | 2200 | 3200 | 4600 |
| 20 | 800-1300 | 170 | 3000 | 2200 | 3400 | 4800 |
| 20 | 950-1400 | 160 | 3000 | 2500 | 3500 | 4800 |
Note: the model which not listed in above table also can be designed according to customer’s requirements.
Range
According to the method of use is divided into different horizontal steel hanging clamp, vertical lifting steel hanging clamp, DHQL type hanging clamp, DSQA type hanging clamp, hanging clamp, steel plate lifting clamp, DSQK type hanging clamp, DHQA type flat lifting clamp and so on the many kinds of steel plate lifting clamp, various suspension clamp pliers are made of high-quality steel safe and reliable work, compact structure, light weight, and the fixed beam used to adjust the track width quickly and easily.
