Material: High strength polyester (PES)
Safety factor: 6: 1, 7: 1
Length: according to customer’s demand
Safe working load: 1-50T
Temperature range: – 40 °C – 100 °C
Type: single layer, double layers, three layers, four layers (special specifications can be customized)
Safety Factor: 6: 1, 7: 1, 8: 1
Standard: EN1492-1, ISO4878
Length: As required

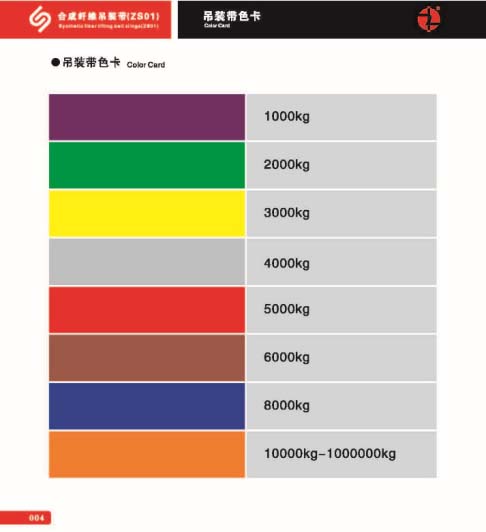

Color: Color code
Flat endless webbing sling
| WLL(kg) | WIDTH(mm) | LENGTH/M (MIN/MAX) | WEIGHT(kg) | |
| 1000 | 25 | 0.5 | 100 | 0.18 |
| 2000 | 50 | 1 | 0.39 | |
| 3000 | 75 | 1 | 0.73 | |
| 4000 | 100 | 1.5 | 0.84 | |
| 5000 | 125 | 1.5 | 0.96 | |
| 6000 | 150 | 1.5 | 1.12 | |
| 8000 | 200 | 2 | 1.65 | |
| 10000 | 250 | 2 | 1.84 | |
| 12000 | 300 | 2 | 2.06 |
Flat webbing sling with two eyes at both ends
| WLL/kg | WIDTH/m | LENGTH/m(MIN) | LENGTH/m(MAX) | WEIGHT(kg) |
| 1000 | 25 | 0.8 | 100 | 0.2 |
| 2000 | 50 | 1 | 0.41 | |
| 3000 | 75 | 1 | 0.6 | |
| 4000 | 100 | 1.5 | 0.75 | |
| 5000 | 125 | 1.5 | 1.02 | |
| 6000 | 150 | 1.5 | 1.06 | |
| 8000 | 200 | 2 | 1.69 | |
| 10000 | 250 | 2 | 2.07 | |
| 12000 | 300 | 2 | 2.17 |
Advantages of flat webbing lifting belt
1. High strength and weight
2. There are many hoisting methods, which can also be used to drag the suspended object
3. Anti-wear and anti-cut protective sleeve can be added
4. Non-conductive, no electric shock hazard
5. Lightweight and soft, easy to use in small Spaces
Application
The white flat webbing slings are widely used in aviation, aerospace, nuclear power establishment, military manufacturing, port loading and unloading, power equipment, machine processing, chemical steel, shipbuilding, transportation and other fields.
Note
1. Lightweight, good flexibility, easy to bend, and easy to use.
2. Does not damage the appearance of the object being hoisted, and is highly maintainable.
3. Lifting stability, high safety factor.
4. The high strength flat webbing sling has high tensile strength, beautiful color and easy to distinguish.
5. The high strength flat webbing sling has a long service life, good corrosion resistance and wears resistance.
